DOBi AC Line Voltage LED Boards

QLUX DOB AC Line Voltage LED Boards

LTF’s AC LED boards are the preferred light engines for premier lighting OEMs for more than 10 years! We offer durable, high performance, cost effective, efficient & flicker-free dimmable DOB LEDs for your OEM applications!

LTF’s AC DOB LEDs use patented technology to provide compact light engines that have been a reliable and affordable choice for many interior and exterior OEM lighting applications. QLUX DOB AC Line Voltage LED boards are fully dimmable, high performance solid-state light emitters. They are optimized for uniform, evenly distributed light patterns and high quality light output with no need for additional power supplies. Best of all, the QLUX DOB series is covered by our industry-leading 50,000 hour warranty.

Custom Designed DOB AC boards: We’ve Mastered Opto-Customization of AC DOBs!

In addition to LTF’s standard DOB products, our innovative engineering team offers custom design and manufacturing of AC LED boards in any shape or performance requested by OEMs. Simply bring your required form factor, lumen, CCT, dimming topology and our engineering team will design the perfect optimized light engine for your specific application. Custom designed DOB development has short lead times and low minimum order quantities. For more information, please contact one of our sales team members.



View or Download the Dimmer Compatibility Chart (PDF) >

50K Hour Warranty Title 24 Compliant and Dim to Warm 3000K Dims to 1800K

Features:

  • Industry leading CRI (90+) and R9 (85+) levels
  • No separate LED driver required
  • Completely and uniformly dimmable with standard Triac or ELV dimmers
  • Optional 0-10V dimming
  • Single CCT options from 2000K to 6500K
  • Dim-to-warm option; 3000K CCT changes to 1800K as it is dimmed
  • CCT tunable or selectable custom options
  • Title 24 / JA8 compliant
  • UL recognized
  • 120V AC 50/60 Hz
  • Standard form factors available: linear, square and round
  • Custom options



Request a Quote or Sample Now
Part NumberProduct PhotoWattageCRI OptionsCCT OptionsDimensionsSpec Sheet
QLUXDOBAR4410W1LEDQLUXDOBAR4410W1LED DOB 10W 120V Dimmable AC Line Voltage LED Board10W90+2700K – 5000K44mm (OD) QLUXDOBAR4410W1LED DOB 10W 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAR4415W1LEDQLUXDOBAR4415W1LED DOB 15W 120V Dimmable AC Line Voltage LED Board15W90+2700K – 5000K44mm (OD) QLUXDOBAR4415W1LED DOB 15W 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAR5716W1LED-T24QLUXDOBAR5716W1LED-T24 DOB 16W 120V Title 24 Compliant Dimmable AC Line Voltage LED Board16W91+2700K – 5000K57mm (OD) QLUXDOBAR5716W1LED-T24 DOB 16W 120V Title 24 Compliant Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAR10015W42LEDQLUXDOBAR10015W42LED DOB 15W 120V Dimmable AC Line Voltage LED Board15W90+2700K – 5000K100mm (OD) QLUXDOBAR10015W42LED DOB 15W 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAR10017W42LEDQLUXDOBAR10017W42LED DOB 17W 120V Dimmable AC Line Voltage LED Board17W90+2700K – 3000K100mm (OD) QLUXDOBAR10017W42LED DOB 17W 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAR10017W27LEDWDMQLUXDOBAR10017W27LEDWDM DOB 17W 120V Dim to Warm AC Line Voltage LED Board17W90+Dim-to-Warm 3000K dims to 1800K100mm (OD) QLUXDOBAR10017W27LEDWDM DOB 17W 120V Dim to Warm AC Line Voltage LED Board Spec Sheet
QLUXDOBAR10017W42LEDWDMQLUXDOBAR10017W42LEDWDM DOB 17W 120V Dim to Warm AC Line Voltage LED Board17W90+Dim-to-Warm 3000K dims to 1800K100mm (OD) QLUXDOBAR10017W42LEDWDM DOB 17W 120V Dim to Warm AC Line Voltage LED Board Spec Sheet
QLUXDOBAR10020W48LEDQLUXDOBAR10020W48LED DOB 20W 120V Dimmable AC Line Voltage LED Board20W80, 90+2400K – 5000K100mm (OD) QLUXDOBAR10020W48LED DOB 20W 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAR16025W84LEDQLUXDOBAR16025W84LED DOB 25W 120V Dimmable AC Line Voltage LED Board25W90+2400K – 5000K160mm (OD) QQLUXDOBAR16025W84LED DOB 25W 120V Dimmable AC Line Voltage LED Board Spec Sheet PDF Download

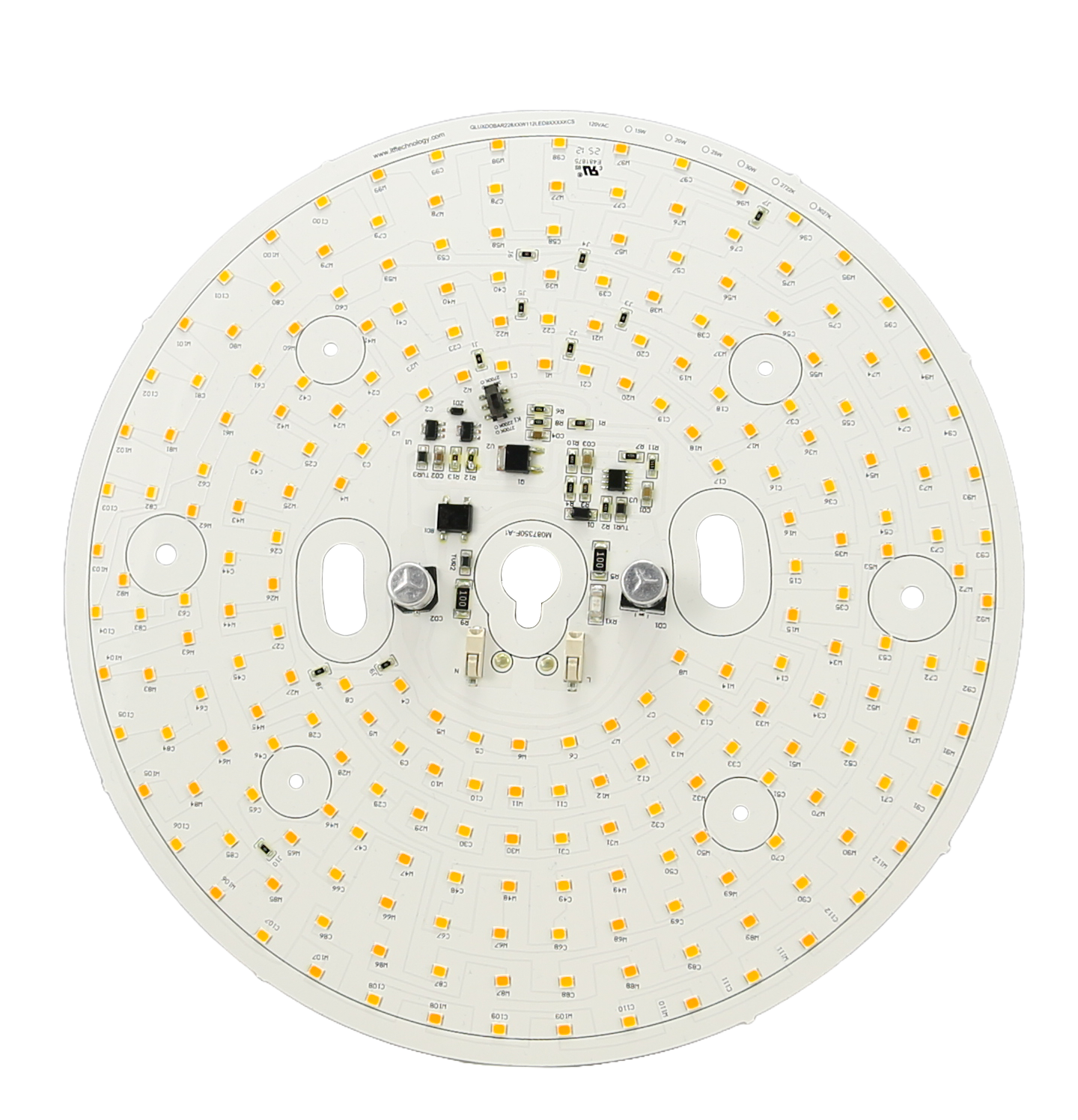

QLUXDOBAR22830W110LEDQLUXDOBAR22830W110LED DOB 30W 120V Dimmable AC Line Voltage LED Board30W90+2500K – 4000K228mm (OD) QLUXDOBAR22830W110LED DOB 30W 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAR22830W110LEDWDMQLUXDOBAR22830W110LEDWDM DOB 30W 120V Dim to Warm AC Line Voltage LED Board30W90+Dim-to-Warm 3000K dims to 1800K228mm (OD) QLUXDOBAR22830W110LEDWDM DOB 30W 120V Dim to Warm AC Line Voltage LED Board Spec Sheet
QLUXDOBAR30045W123LED9QLUXDOBAR30045W123LED9 45W 300mm Round 120V AC Line Voltage Driver on Board LED Board45W90+2700K – 4000K300mm (OD) QLUXDOBAR30045W123LED9 DOB 45W 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAL18410W28LED-T24QLUXDOBAL18410W28LED-T24 DOB 8W 120V Dimmable AC Line Voltage Title 24 Compliant LED Board8W90+2200K – 5000K184x56mm
QLUXDOBAL18410W28LED-T24 DOB 8W 120V Dimmable AC Line Voltage Title 24 Compliant LED Board Spec Sheet
QLUXDOBAS7720W66LEDQLUXDOBAS7720W66LED 77mm Square DOB 20W 120V Dimmable AC Line Voltage LED Board20W90+3000K, 4000K77x77mm
QLUXDOBAS7720W66LED 77mm Square DOB 20W 120V Dimmable AC Line Voltage LED Board Spec Sheet PDF Download
QLUXDOBAS7724W66LEDQLUXDOBAS7724W66LED 77mm Square DOB 24W 120V Dimmable AC Line Voltage LED Board24W90+3000K, 4000K77x77mm
QLUXDOBAS7724W66LED 77mm Square DOB 24W 120V Dimmable AC Line Voltage LED Board Spec Sheet PDF Download
QLUXDOBAS25436W122LEDQLUXDOBAS25436W122LED DOB 36W 120V Dimmable AC Line Voltage LED Board36W90+2700K, 3000K254x254mm
QLUXDOBAS25436W122LED DOB 36W 120V Dimmable AC Line Voltage LED Board Spec Sheet PDF Download
QLUXDOBAL2925W56LEDQLUXDOBAL2925W56LED DOB 5W 120V Dimmable AC Line Voltage LED Board5W92+2700K, 3000K292x38mm
QLUXDOBAL2925W56LED DOB 5W 292mm 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAL2008W30LED92740QLUXDOBAL18410W28LED-T24 DOB 8W 120V Dimmable AC Line Voltage Title 24 Compliant LED Board8W93+Selectable CCT 2700K or 4000K200x57mm
QLUXDOBAL2008W30LED92740 DOB 8W 120V Dimmable AC Line Voltage Under Cabinet LED Board Spec Sheet
QLUXDOBAL29215W56LEDQLUXDOBAL29215W56LED DOB 15W 120V Dimmable AC Line Voltage LED Board15W962700K, 3000K292x38mm
QLUXDOBAL29215W56LED DOB 15W 292mm 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAL29620W84LEDQLUXDOBAL29620W84LED DOB 20W 120V Dimmable AC Line Voltage LED Board20W80, 90+2400K – 5000K296x45mm
QLUXDOBAL29620W84LED DOB 20W 120V Dimmable AC Line Voltage LED Board Spec Sheet
QLUXDOBAL59925W84LED-T24QLUXDOBAL59925W84LED-T24 DOB 20W 120V Dimmable AC Line Voltage Title 24 Compliant LED Board20W80, 90+2700K – 5000K599x38mm
QLUXDOBAL59925W84LED-T24 DOB 20W 120V Dimmable AC Line Voltage Title 24 Compliant LED Board Spec Sheet

To Request a Quote or Sample

Simply fill out and submit the form below, and an LTF team member will contact you within 24 hours (Monday-Friday, 8am-6pm Central TIme).

For more information about DOBi AC Line Voltage LED Boards and OEM pricing, please contact LTF
Phone: +1(847) 498-5832     Email: LTFsales@ltftechnology.com
