Light Tune Series Dual Channel LED Drivers

For Adjustable CCT and Color Tunable LEDs

Light Tune Series Dual Channel LED Drivers are the ideal solution for powering color tunable LEDs, enabling precise control of color temperature and lumen output via dual 0-10V dimmers or a smart controller. Dynamically transitioning CCT in human centric lighting applications is a desired feature which OEM lighting will find it an easy goal to achive by using LTF dual Chanel LED drivers and COBs.  Dial in the perfect light for any situation, and enjoy the myriad benefits of human-centric LED lighting.

Key Features Include:

  • Dual channel output for CCT tuning or color mixing applications.
  • Universal input voltage, 120-277V AC 50/60Hz.
  • 0-10V or PWM dimmable.
  • 0.1% – 100% dimming range.
  • Title 24 / JA10 standards compliant.
  • Auxiliary 12V DC / 0.1A output.
  • 5 year warranty (at Tc ≤ 85°C).

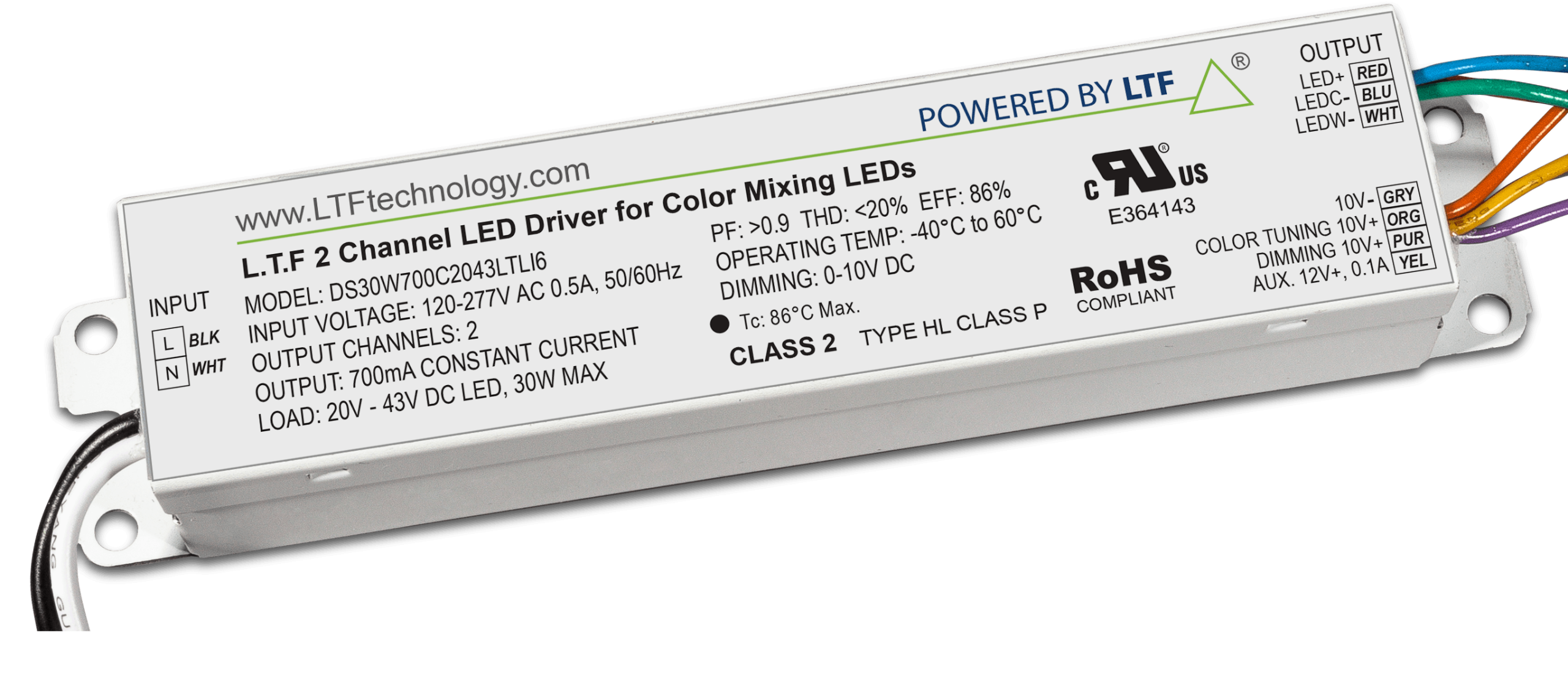

30W Light Tune Series Dual Channel LED Driver

Model Number: DS30W700C2043LTLI6-0060

Input: 120-277V AC, 0.3A 50/60Hz

Wattage: 30W

Output Channels: 2 channels for CCT tuning or color mixing LEDs

Constant Current Output: 700mA

Load: 20V – 43V DC LED

Dimming: 0-10V, PWM dimmable

Typ. Efficiency: 86%

Power Factor: > 0.90

Dimensions: 155(132.5)mm x 32.4mm x 25mm (“LI6” case form factor)

Download the Spec Sheet (PDF)  >



DS30W700C2043LTLI6-0060 30W 700mA Constant Current Light Tune Series 2 Channel Driver

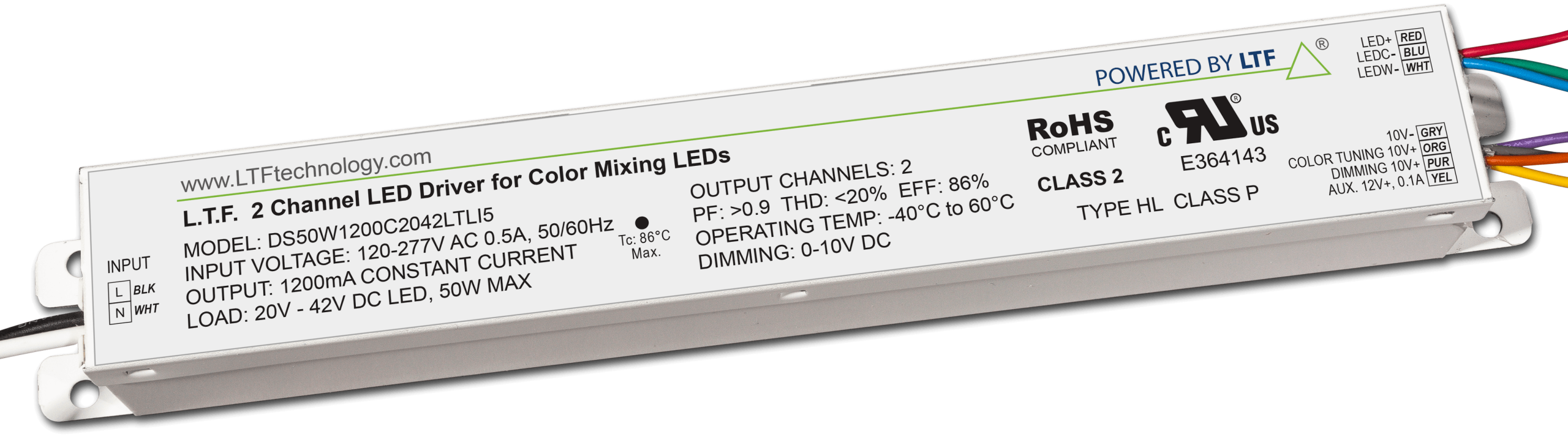

50W Light Tune Series Dual Channel LED Driver

Model Number: DS50W1200C2043LTLI6-0060

Input: 120-277V AC, 0.5A 50/60Hz

Wattage: 50W

Output Channels: 2 channels for CCT tuning or color mixing LEDs

Constant Current Output: 1200mA

Load: 20V – 42V DC LED

Dimming: 0-10V, PWM dimmable

Typ. Efficiency: 86%

Power Factor: > 0.90

Dimensions: 240(210.5)mm x 27mm x 25mm (“LI5” case form factor)

Download the Spec Sheet (PDF)  >



DS50W1200C2042LTLI5-0060 50W 1200mA Constant Current Light Tune Series 2 Channel LED Driver

2 Channel LED Driver Wiring Diagrams

(Click to Enlarge)

2 Channel LED with 0-10V CCT Tuning and 0-10V Dimming

Wiring Diagram for 2 Color LED Color Tuning and 0-10V Dimming

Single Channel LED with 0-10V Dimming

Wiring Diagram for Single Color LED and 0-10V Dimming
